The carbon fiber plates we carry are available in fabric and unidirectional styles with a variety of materials, finishes, and thicknesses. A composite saves weight significantly over metal plates, from straight carbon fiber sheets to hybrid composites, from veneers to plates nearly two inches thick. Contact us to get a quote for a carbon fiber plate, no matter how large or small your project is. We also offer machining services.
Why Are There So Many Kinds Of Carbon Fiber Plates?
The carbon fiber plate comes in so many variations that it can be used for a variety of applications. When you need light and strong carbon fiber plates, they are an excellent substitute for aluminum plates. High temperature plates are good to 400°F and unidirectional plates are extra stiff in one direction.
Carbon fiber composite sheets are manufactured using both compression molding and vacuum infusion techniques, utilizing carbon fiber fabric combined with epoxy resin or carbon fiber prepreg. During compression molding, the carbon fiber prepreg is placed into a mold, then heated under pressure using large hydraulic presses. The sheets are cured according to a specific curing cycle and produced in various dimensions.
The Vacuum Infusion technique employs vacuum pressure to draw resin into a laminate. Dry carbon fiber layers are arranged within the mold, and vacuum is applied before introducing the resin. Once a full vacuum is established, the resin is drawn directly into the carbon fiber layers.
We ensure exceptional quality and craftsmanship in our carbon fiber sheets, which consistently feature a high-gloss surface finish. Available in multiple thicknesses, the stiffness of each sheet can be tailored through various carbon fiber layup configurations to suit specific applications.

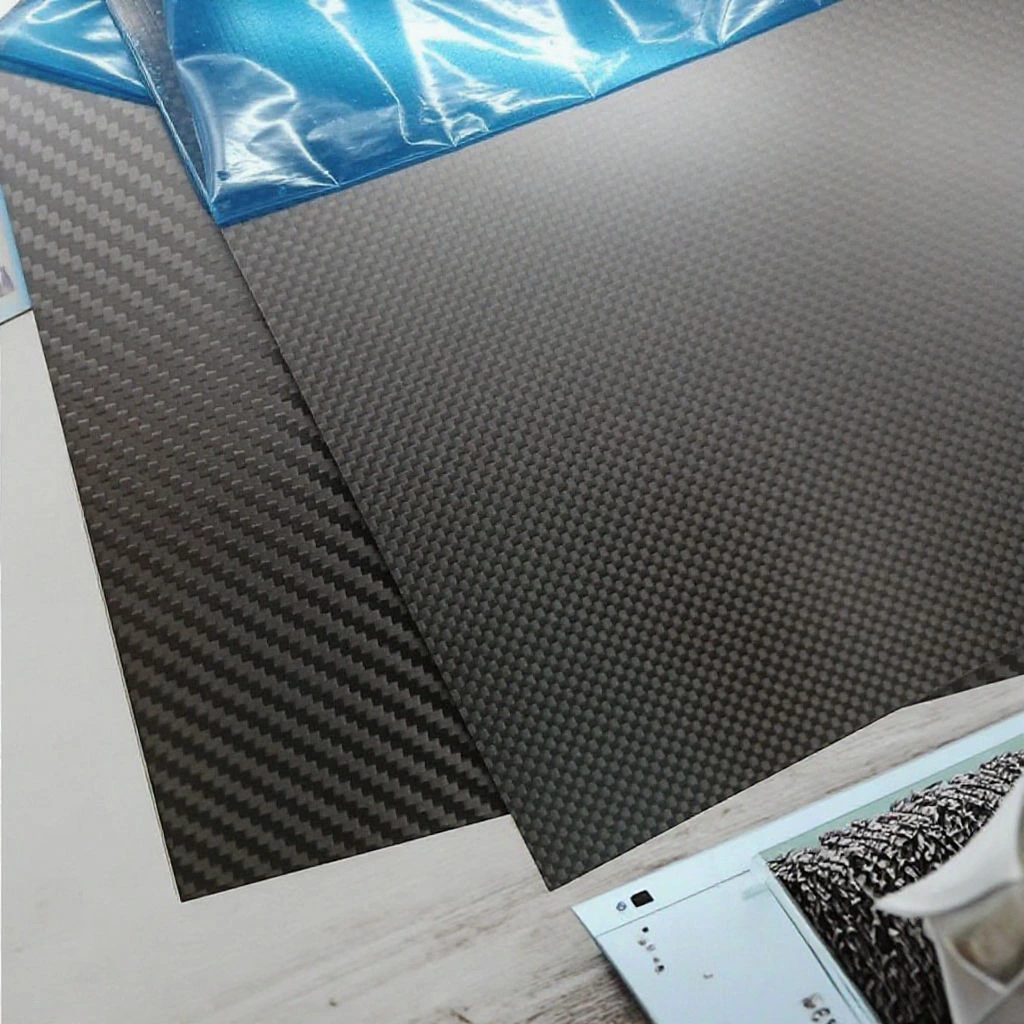

Carbon Fiber Sheets, Panels and Plates
Bestwill Composites specializes in producing customized, innovative composite parts across various industries. We design carbon fiber sheets from the molecular level to precisely meet your application requirements. Additionally, our online store features a wide range of ready-to-ship premade carbon fiber sheets available directly from our manufacturing facility in Duluth, MN.
Thanks to their distinct properties, carbon fiber sheets and plates are preferred over traditional materials such as aluminum, steel, and titanium in a wide range of applications.
- X-Ray transparency
- Outstanding resistance to fatigue
- Exceptional strength and rigidity combined with low weight
- Dimensional stability: Minimal to negligible Coefficient of Thermal Expansion (CTE)
Carbon Fiber Plate Designs
Quasi-isotropic (0°/90°/+45°/-45°)
Quasi-isotropic plates are engineered to handle loads from multiple directions, making them well-suited for torsional and off-axis stresses. Our quasi-isotropic plates consist of evenly distributed unidirectional carbon fiber prepreg arranged in the 0°, 90°, and ±45° orientations.
0°/ 90° (balanced)
This is the standard layup for carbon fiber plates, ideal for a wide range of applications. Balanced 0°/90° plates provide superior strength and stiffness along both the axial and transverse axes. Our 0°/90° plates are made from evenly distributed unidirectional carbon fiber prepreg aligned in the 0° and 90° directions.
Custom-Made Carbon Fiber Plates
For tailored solutions to meet your specific requirements, rely on
Bestwill Composites. We specialize in designing and producing carbon fiber sheets and other composites in virtually any laminate configuration, thickness, or dimension to address your challenges.
Our engineers collaborate closely with you to ensure your parts precisely meet specifications and achieve optimal performance. With deep expertise in composites—from materials science to component manufacturability—
Bestwill Composites delivers cost-effective composite solutions across industries such as automation, robotics, and aerospace. Contact one of our engineers today to discuss your part or project. Let’s begin!
