Compared to aluminum alloys and engineering plastics, carbon fiber composite materials offer superior impact resistance, longer fatigue life, and enhanced electromagnetic properties, making them especially well-suited for the structural design of flying vehicles that demand high load-bearing capabilities and exceptional adaptability to harsh environments.
As an advanced material, carbon fiber offers distinct benefits in drone manufacturing. Compared to traditional materials, carbon fiber drone shells provide high strength, lightweight construction, corrosion resistance, and fatigue durability. Their superior strength and stiffness, combined with low weight, enhance drone flight performance and endurance. Additionally, carbon fiber’s durability in harsh conditions extends service life, lowering maintenance costs and replacement frequency. These comprehensive advantages have made carbon fiber a preferred choice in modern drone production, fueling technological progress and innovation in the industry.

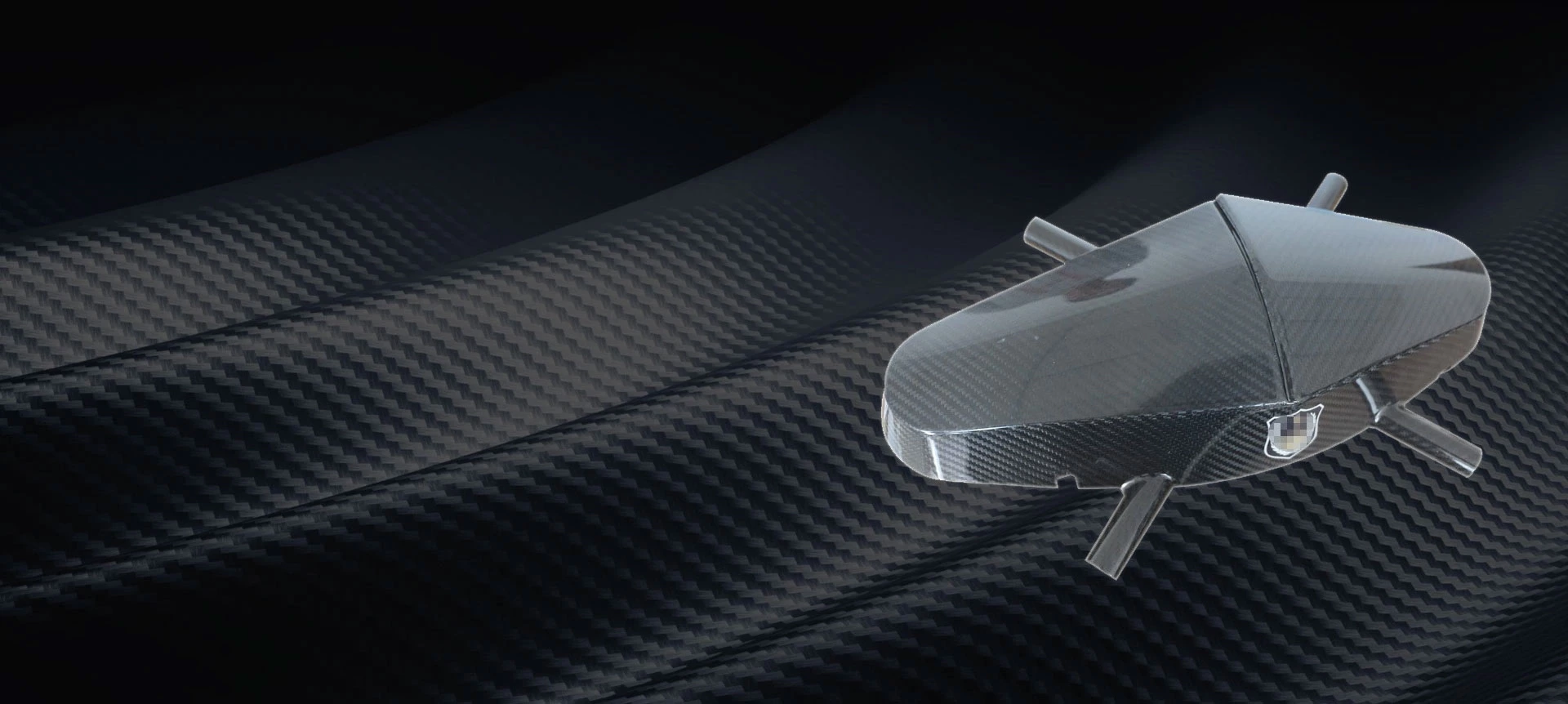

Bestwill Composites has entered the dynamic market of carbon fiber UAV shells to meet increasing global demand. We specialize in producing carbon fiber UAV shells and, supported by our product development team and in-house manufacturing capabilities, we are equipped to create customized composite components.
In the history of UAV development, the endurance of UAVs has always been limited by the development of the energy side. At this stage, the energy volume can only be increased under the premise of limited energy density.
However, the increase in the volume and weight of energy will lead to the drone's increasing size and difficulty of flight. If a lighter material is used as the shell, it will effectively reduce the weight of the fuselage and provide more space for the energy end. In addition to achieving faster speeds and higher crawl heights, it can also greatly extend the cruising range and service life of the aircraft.
The choice of shell materials for drones is not only determined by the desire to reduce weight, but also by the material itself's strength, toughness, and weather resistance, which can be effective in preventing damage from drops and improving impact resistance. The drone industry also has many key demands for shell materials.
A certain proportion of the UAV manufacturing materials used in the past were aluminum alloys, titanium alloys, steel, etc. Even though these metal materials are strong, they are heavy, and their specific strength or specific rigidity aren't ideal, which results in the payload of UAVs. Small and easy to reflect radar signals in order to form a secondary band. Lightweight, corrosion resistance, low thermal expansion coefficient, fatigue resistance, seismic resistance, and electromagnetic shielding are some of the outstanding performance advantages of CFRP, which can be integrated into different shapes and structures, and has good electromagnetic shielding properties.
Drones, also known as UAVs (unmanned aerial vehicles), are revolutionizing various fields including security, military operations, traffic monitoring, and logistics, presenting significant opportunities for innovation. Carbon fiber is the material of choice for drone manufacturing because of its distinctive set of properties, notably its exceptional strength-to-weight ratio, which makes it ideally suited for building drones and their essential components.
Carbon fiber is recognized for its exceptional stiffness and rigidity. A rigid structure is essential for drones to ensure stability and responsiveness while flying. The stiffness of carbon fiber reduces flexing and vibrations, enhancing control and maneuverability.
To optimize flight duration and agility, drones must be lightweight. Carbon fiber’s exceptional strength-to-weight ratio enables a robust framework without significant added mass.
It also features outstanding tensile strength, enabling it to endure substantial loads and forces without bending or fracturing. This durability is crucial for resisting stresses experienced in flight, including wind pressure and sudden maneuvers.
The composite material offers superior resistance to harsh environments and impacts compared to many alternatives. This durability is vital for drones facing rough landings, collisions, or severe weather conditions.
Additionally, carbon fiber resists corrosion unlike metals, making it ideal for drones operating in outdoor or marine settings. This corrosion resistance extends the drone’s structural lifespan, even when exposed to moisture or saltwater.
Carbon fiber composites can be shaped into complex and aerodynamic forms, providing design flexibility. This capability allows drone manufacturers to improve aerodynamic efficiency and minimize drag, thereby boosting flight performance.
Carbon fiber serves as an excellent electrical insulator. In drone design, which involves multiple electronic components and wiring, utilizing a non-conductive material like carbon fiber helps avoid electrical interference and short circuits.
It is important to recognize that the manufacturing process can differ based on the drone’s design, the manufacturer, and the scale of production. Advanced methods such as automated layup, CNC machining, and 3D printing may be utilized to improve efficiency and precision. The production of carbon fiber drones involves multiple stages. Below is a general summary of the process:
Design: The drone’s design is initially developed by considering aspects like flight performance, payload capacity, and aerodynamics. Typically, computer-aided design (CAD) software is employed to generate a detailed 3D model of the drone.
Mold Creation: A mold is fabricated according to the drone’s design, typically using materials like foam, wood, or fiberglass. This mold establishes the shape and dimensions of the drone’s carbon fiber parts.
Preparing Carbon Fiber Sheets: Carbon fiber sheets, made from woven carbon fiber fabric impregnated with resin, are sliced into specified shapes and dimensions. The fabric varies in weight and weave to meet the needed strength and stiffness requirements.
Layup: The carbon fiber sheets are precisely placed onto the mold according to the designated layering sequence and orientation dictated by the design. This arrangement maximizes strength and stiffness while keeping weight to a minimum.
Resin Infusion: After the carbon fiber sheets are arranged, the entire assembly is infused with resin using methods such as vacuum bagging or resin infusion. The resin penetrates the spaces between the carbon fiber layers, binding them together to create a solid composite structure.
Curing: Following resin infusion, the drone components are heated in an oven or exposed to controlled heat to begin the curing process. This step hardens the resin, resulting in a strong and durable structure. Curing duration and temperature depend on the specific resin employed.
Trimming and Finishing: After curing, the components are taken out of the mold, and any surplus carbon fiber and resin are trimmed to attain the required shape and dimensions. The edges are then sanded or smoothed to provide a clean, finished appearance.
Assembly: The individual carbon fiber parts—including the frame, arms, and landing gear—are assembled with other drone hardware such as motors, propellers, flight controllers, and electronic systems. Assembly is carried out by attaching components using screws, bolts, or adhesive bonding.
Testing and Quality Control: The finished drone is subjected to thorough testing and quality assurance processes, including evaluations of structural integrity, balance, and operational functionality. Additionally, flight tests may be performed to verify performance and stability.
Packaging and Distribution: After successfully passing all quality inspections, the drones are packaged and prepared for shipment to retailers or end customers.
BestWill is the professional Carbon Fiber UAV Shell factory in China, who is engaged in the research, development sale and service of Carbon Fiber UAV Shell and more carbon fiber products. Our team of knowledgeable professionals is committed to maintaining high quality standards and delivering exceptional customer service. Our expertise, accompanied by our I S O 9 0 0 1 certifications and numerous patents, allows us to meet and exceed customer expectations. Our consistent efforts in upgrading and innovating our products have established us as leaders in the extension tools industry and contributed to the growth of a healthier industry.
